Overview
70 hpPeak power
125 kgTarget vehicle weight
1060 NmPeak torque at rear wheel
60–115 kmVehicle range, off-road
Drivetrain
70 hp / 52 kWPeak power
1060 NmPeak torque at rear wheel
14,000 RPMMaximum motor RPM
Internal Permanent Magnet (IPM) with carbon-sleeved rotorMotor type
288 / 336 VoltNominal / maximum system voltage
Lightweight minimal wiring harness with automotive-grade CAN-bus systemElectrical architecture
Battery
InfiniPack Endurance 8.6
Dual battery with toolless swapping systemArchitecture
< 30 secondsBattery swap time
8.6 kWhNominal battery capacity
2 × 22 kgApproximate weight
IP67Equivalent protection rating
60–115 kmVehicle range, off-road (professional race pace - recreational use)
1–7 hoursRiding time, off-road race pace
2000 hours riding time until 80% of original capacity leftBattery lifecycle
Chassis
125 kgTarget vehicle weight
AluminiumFrame and subframe material
Cast aluminiumSwingarm construction
Frame integrated coolingThermal management
Included skid-plateProtection included
Integrated grab handles to easily lift the rear of bikeRear lifting
Easily strap down the bike through clearance for straps in front maskTransport setup
Charging
90 minutesCharging time 20–80%
3.3 kWPower of charger (230V)
Easily carriable chargerCharger form-factor
Easily move and charge batteries outside of vehicle with separately available InfiniDock charging dockOff-bike charging
Storage
7LApproximate volume
Integrated multi-functional storage area that fits for example a toolkit, food and drinks, first aid kitStorage function
Extensive integrated toolkitFuture accessory
On-board charger moduleFuture accessory
CCS charger moduleFuture accessory
Suspension
KYB, 48 mm closed cartridge coil-spring fork, 300 mm travel, adjustable compression and rebound dampingFront suspension
KYB, 50 mm piston, 300 mm wheel travel, triple adjuster for high & low speed compression and rebound, adjustable preloadRear suspension
Linkage suspensionRear suspension type
Brakes & wheels
Brembo, double 24 mm piston floating caliper, 10 mm master cylinder, 260 mm discFront brakes
Brembo, single 26 mm piston floating caliper, 13 mm master cylinder, 220 mm discRear brakes
90/90-21, Haan wheels billet hub, Takasago EXCEL A60 1.6” rim, heavy-duty stainless-steel spokesFront wheel, only for Founders Edition
140/80-18, Haan wheels billet hub, Takasago EXCEL A60 1.85” rim, heavy-duty stainless-steel spokesRear wheel, only for Founders Edition
Lighting
Radian Vision full LED headlight, with animated multifunctional DRLHeadlight
Charging status indicatorSecondary DRL functionality
Full LED taillightTaillight
Interface & connectivity
Minimal-distraction interface, easily operable with glovesInterface
Lap-record manual timekeeping featureTiming feature
Advanced integrated enduro time-keepingIntegrated enduro time-keeping
App to personalise characteristics of the vehicle, available for Android and iOSApp connectivity
Over-The-Air (OTA) updatesSoftware updates
Homologation
Street legal in EUHomologation

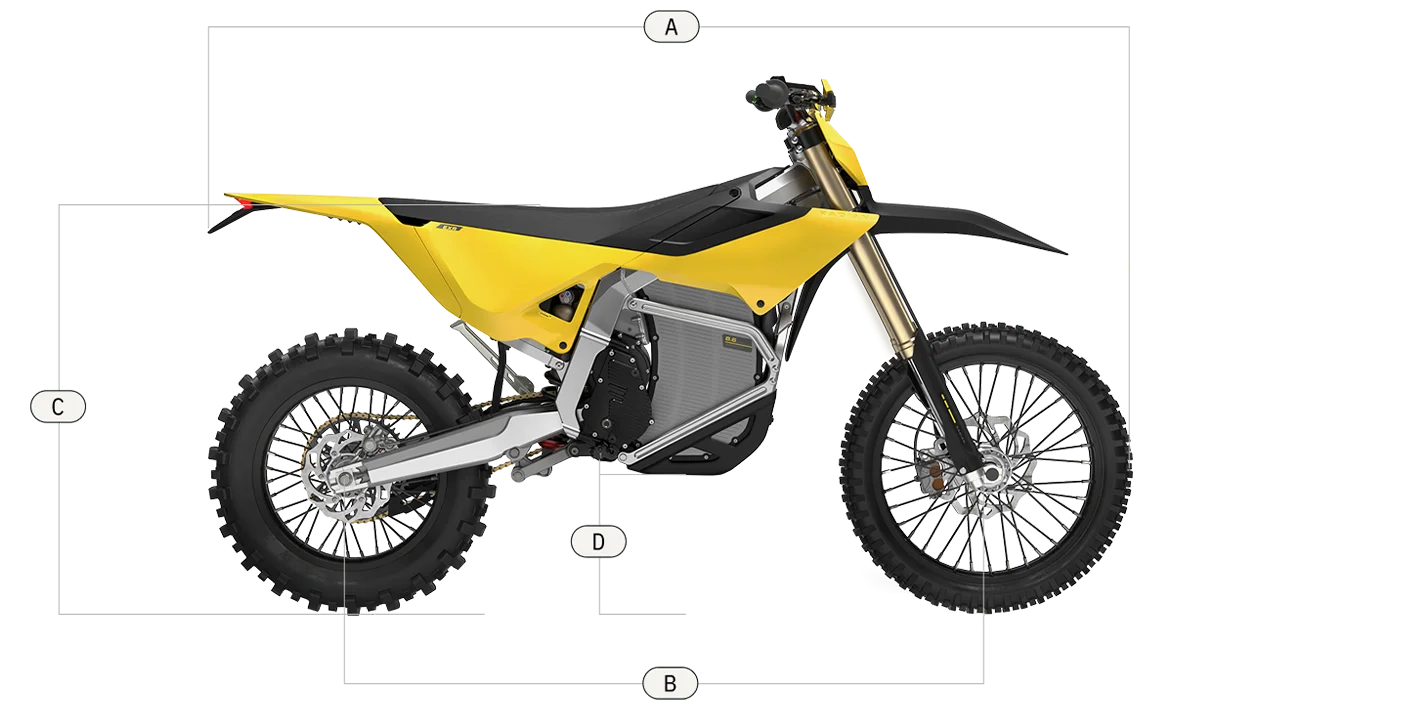

Dimensions
(A) 2172 mmOverall length
(B) 1483 mmWheelbase
(C) 962 mm / 992 mmSeat height (static / fully extended)
(D) 345 mm / 375 mmGround clearance to skidplate (static / fully extended)
